D5523 Luffing Jib Tower Crane 55m Boom Length 12T Load Split Mast Section to Save Containers

Ask Lasest Price
Brand Name :	HYCM-Tower CraneS
Model Number :	QTD230(5523) Types of Tower Cranes
Certification :	CE, ISO
Price :	Negotiation
Payment Terms :	30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight
Supply Ability :	150 pcs of types of tower cranes per month
Delivery Time :	about 55 days after receiving the deposit

Add to Cart

Product Details
Company Profile

D5523 Luffing Jib Tower Crane 55m Boom Length 12T Load Split Mast Section to Save Containers

D5523 Luffing Jib Tower Crane 55m Boom Length 12T Load Split Mast Section to Save Containers

Specifications for D5523 Luffing Jib Tower Crane 55m Boom Length 12T Load Split Mast Section to Save Containers

Main Performance		Main Specifications
Rated lifting moment (KN.m)		2300
Max. lifting load(t)		12
Tip load(t)		2.3
Working range(m)		5~55
Lifting height(m)	Freestanding height	37.5
Lifting height(m)	Attaching height	260
Mast section	Main limb (mm)	∠20020020/ Q345B
Mast section	Section size(mm)	200020003000
Lifting jib	Upper chord(mm)	80*8 Square tube /Q345B
Lifting jib	Lower chord(mm)	100*8 Square tube /Q345B
Counter jib	Length(mm)	7530
Hoisting mechanism	Reducer	45TLQ30
	Motor	YZTPF225M-4-J13021-45KW
	Brake	YWZ-315/45
	Wire rope	35W*7-16-1960 I right lay
	Hoisting speed (m/min)	0-100 0-50
Slewing mechanism	Reducer	HP90.160.195
	Motor	YPHW132L2-4-9KW
	Slewing speed (r/min)	0-0.57
Trolleying mechanism	Reducer	45TLQ25
	Motor	YZTPF225M-4-J13021-45KW
	Trolleying speed( m/min)	0-10
Jacking-up speed	Hydraulic pump station Jacking oil cylinder	TQZ230/180/125
Jacking-up speed	Motor	11KW
Slewing bearing	Type	1600.45

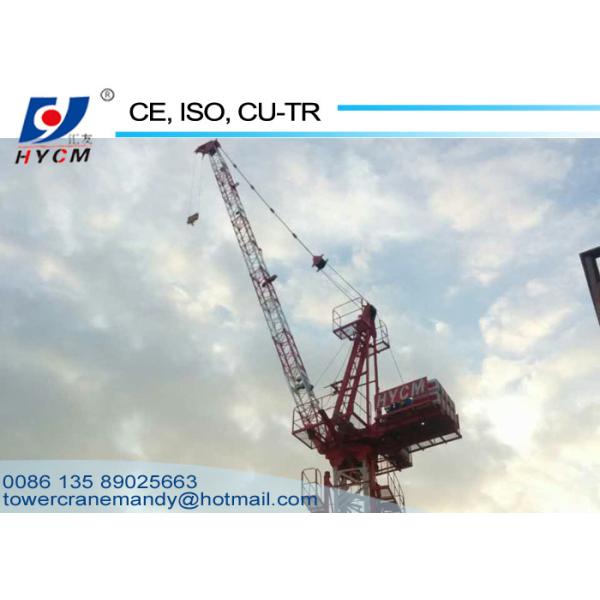

Photos for D5523 Luffing Jib Tower Crane 55m Boom Length 12T Load Split Mast Section to Save Containers

Description for 55m Lifting Arm 37.5m Height 12ton Luffing Jib Types of Tower Cranes in Cambodia with Form E

1. The Fixed Tower crane base fixed to the ground on a concrete foundation

2. The base is then attached to the mast sections which gives the crane its height.

3. Further the mast is attached to the slewing unit that allows the crane to slewing.

4. The horizontal jib (working arm) is the part of the crane that carries the load.

5. The counter-jib carries a counterweight while the jib suspends the load to and from the center of the crane.

6. The crane operator usually stay in the cabin at the top of the tower.

7. The lifting hook is operated by the operator using electric motors to manipulate wire rope cables through a system of sheaves which lift the building materials

Our Service for 55m Lifting Arm 37.5m Height 12ton Luffing Jib Types of Tower Cranes in Cambodia with Form E

a.Quality Assurance

Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.

b.The Fastest Reply

Detailed information,specific model and price of products will be provided quickly after receiving inquiry.

c.Excellent Package

We provide standard, strong, protective package for our products to prevent it from outer damage.

d.Warranty Assurance

For our tower crane, we provide 1 year (from BL date) warranty period and quick replace service.
