1.61.63m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane

Ask Lasest Price
Brand Name :	HYCM TOWER CRANES
Model Number :	QTZ80(5513/6010)
Certification :	CE, ISO, GOST, CU-TR
Price :	Negotiation
Payment Terms :	30% advance payment and balance before shipment or by copy of B/L
Supply Ability :	about 250 pcs of hammerhead tower crane per month
Delivery Time :	about 25 days after receiving the deposit

Add to Cart

Product Details
Company Profile

1.61.63m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane

1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane

Specifications for 1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane

Main Performance		Main Specifications
Rated lifting moment (KN.m)		800
Max. lifting load(t)		8
Tip load(t)		1.3/1.0
Working range(m)		55/60
Lifting height(m)	Freestanding height	45
Lifting height(m)	Attaching height	150
Mast section	Main limb (mm)	∠180X14/ Q345B
Mast section	Section size(mm)	1600X1600X3000
Lifting jib	Upper chord(mm)	Ø89X8 / 20#
	Lower chord(mm)	100X8 two angle steel/ Q345B
	Parallel face width (mm)	1360
Counter jib	Main limb(mm)	［32b/ Q235B
Counter jib	Length(m)	12.636
Hoisting mechanism	Reducer	30TQ20
	Motor	YZRD225-4/8-30/30KW
	Brake	YWZ-315/45
	Wire rope	6X37-16-1770-1-1right lay
	Hoisting speed (m/min)	80/40 40/20
Slewing mechanism	Reducer	XX100,195
	Motor	YZR132-6-3.7KW
	Coupler	YOX280A
	Slewing speed (r/min)	0.6
Trolleying mechanism	Reducer	XX120
	Motor	YD132S-4/8-3.3/2.2KW
	Trolleying speed( m/min)	40/20
Jacking-up speed	Hydraulic pump station Jacking oil cylinder	TQZ80/160/125
Jacking-up speed	Motor	Y132M-4-5.5
Slewing bearing	Type	1250.45

FAQ for1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane

Q1: What is the Warranty for tower cranes?

A1: For the tower cranes, we can supply 1 year warranty. If there is quality problem of any parts (excluding easy worn spare parts) on our side during this period, we will supply a new one by free for replacement

Q2: What are the optional parts for your tower cranes?

A2: 1) Anemometer

2) Air conditioner for operation cab

3) Black box for operation cab

4) Remote control

5) Full VFD (Variable Frequency Drive) control

Q3: How many countries had your tower cranes exported to?

A3: Our tower cranes had exported to more than 30 countries, such as Vietnam, Philippines, Indonesia, India, Sri Lanka, Cambodia, Russia, Kazakhstan, Brazil, Cyprus, Belgium, Madagascar, Thailand and Algeria etc.

The process features for 1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane

1) Automatic submerged arc welding is adopted in the main section limbs and chord boom. It has high thermal efficiency, high penetration, high production efficiency, while reducing the pores and crack defects, increases the weld strength and the beautiful appearance.

2) We adopt carbon dioxide gas welding; it has heat concentrated, a small welding line, high strength and resistance to rust and crack. it can reduce tress and deformation, it has high strength and resistance to rust and crack.

3) Shot blasting is used for masts to strength the hardness of steel surface; enhance the paint adhesion and prolonging its life

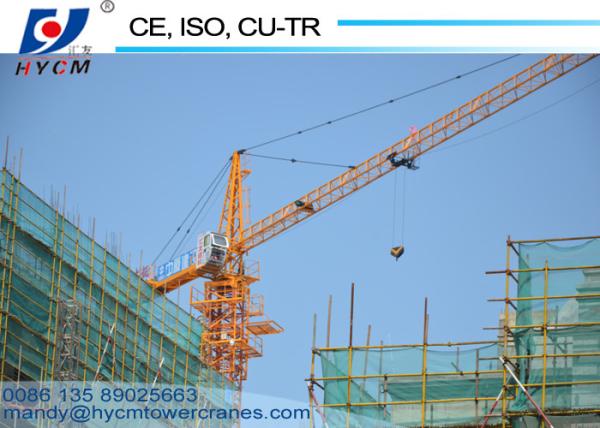

Photos for 1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
